What are Thermotech 21 Panels?:

• Highly insulated building panels with a core of rigid insulation supported with exterior and interior steel framing members made from 1" x 2" 18 gauge galvanized steel.
• Steel framing members are joined together with self-tapping screws to provide a warp-free integral structure
• Adjacent panels are joined with top and bottom 1-1/2" x 1-1/2" steel angles which are secured with self-tapping screws.

Advantages:

• Quick Erection
• Excellent Structural Integrity
• Unprecedented Energy Efficiency
• Increased Job Site Safety
• Superior Affordable Housing from single family to whole developments
• Tremendous Design Flexibility
• Substantially Stronger than Conventional Framing.
• Lower Construction Cost
• Total Superior Building Solution

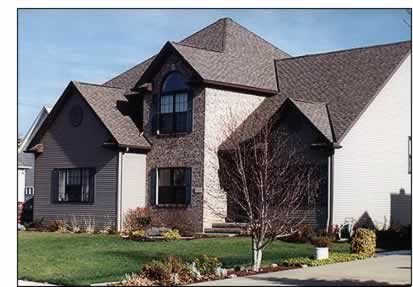

Finishing a Techbuilt Systems Home:

• General Carpentry skills are all that is needed to finish a home constructed with Techbuilt panelized wall and roof system
• Roof Finish: After panel joints are sealed, ½" OSB or plywood is fastened to the steel structural members in the roof panels and then felt paper and shingles are installed.
• Exterior Siding: is directly applied to the Techbuilt panels.
• Windows and Doors: are "ready to install" in a Techbuilt System home because of the exacting standards used to cut rough openings prior to delivery
• Interior partition walls: are generally constructed of either wood or steel 2 x 4s and sheathed with drywall as in conventional frame construction.
• Horizontal Wiring: runs are engineered into the panels prior to assembly, so field wiring is simplified. Vertical runs can be field routed with minimal effort.
• Electrical Boxes: are field screwed to the structural support members in the wall panels
